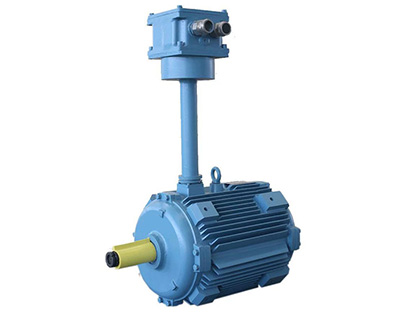

YBT3-H 系列船用風機用隔爆型三相異步電動機

YBT3-H 系列船用風機用隔爆型三相異步電動機

YBT3-H Series Explosion-proof Three Phase Marine Asynchronous Motor For Axial Flow Fan

一、產品概述 Product Overview

YBT3-H系列電動機為全封閉隔爆型三相異步電動機。該電機符合GB3836.1《爆炸性氣體環境用電氣設備第1部分通用要求》和GB3836.2《爆炸性氣體環境用電氣設備第2部分隔爆型“d” 》的規定。具有性能好，噪聲低，維修方便等優點。該系列電動機適用于防爆標志為ExdⅡCT4 Gb, 溫度級別為T1~T4組的可燃性氣體或蒸汽與空氣形成的爆炸性混合物的場所，與CBZ-Ⅱ型船用防爆軸流通風機配套使用。

YBT3-H series motors are totally enclosed explosion-proof three phase asynchronous motors. The motors are designed and manufactured according to GB3836.1 “Electrical apparatus for explosive gas atomosphere-part1: General requirement” and GB3836.2 “Electrical apparatus for explosive gas atmosphere-part2:Flameproof enclosure “d ”.the motors have good performance ,low noise and easy maintenance. The motors can be used on the explosive mixture which compound with temperature class T1~T4 easy-ignition air or steam and air , where explosion-proof mark is ExdⅡCT4 Gb. The motors can be worked with CBZ-Ⅱtype of axial flow fan.

二、環境條件 Operation Condition

環境溫度：-25~45℃；

Ambient temperature: -25~45℃;

海拔：<1000m；

Altitude: <1000m；

zui大相對濕度：≤95%；

Relative humidity: ≤95%；

傾斜搖擺：±22.5℃（可能發生縱向和橫向傾斜）；

Inclination and swing: ±22.5℃(The longitudinal and lateral tilt might happened);

有油霧、鹽霧、霉菌及海水的影響；

Oil-mist salt-mist fungus and sea water exist;

有船舶正常營運中產生的沖擊、振動；

Shock and vibration might happened during shipping;

存在有引燃溫度組別為T1~T4組的可燃性氣體或蒸汽與空氣形成的爆炸性混合物場所；

In air there might be exist explosive mixture which compound with temperature class T1~T4 easy-ignition air or steam and air.

二、基本參數Basic Parameter

?電制:380V/50Hz、440V/60Hz

Volt and Frequency: 380V/50Hz、440V/60Hz

絕緣等級：F

Insulation Class: F

防護等級：IP55、IP56

Degree of protection: IP55、IP56

防爆等級：ExdIICT4 Gb

Explosion-proof Mark: Exd IICT4 Gb

工作制：S1

Duty: S1

接法:3kW及以下為Y，其他功率為△

Connection: 3kW or less than 3kW connected Y, the others connected △

繞組溫升（電阻法）為80K，軸承允許溫度（溫度計法）為90℃

Temperature rise of winding(resistance method)shouldn’t exceed 80K, allowed temperature of bearing(thermometer method)shouldn’t exceed 90℃.

三、主要技術參數 Main Technical Data：

如下表所示：功率為0.75kW~55kW、極數為2、4、6、8極電動機的主要技術參數；

As table shown below, the main technical data of 2、4、6、8 poles of motors which output are 0.75kW~55kW.

型號 Type	功率 Output kW	電流 current A		轉速 Speed r/min		型號 Type	功率 Output kW	電流 current A		轉速 Speed r/min
		380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz			380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz
		380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz			380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz
YBT3-80M1-2-H	0.75	1.8	1.6	2820	3460	YBTX-200L-4-H	30	57.3	49.8	1476	1779
YBT3-80M2-2-H	1.1	2.6	2.2	2820	3460	YBTX-225M-4-H	45	84	73.4	1480	1783
YBT3-90S-2-H	1.5	3.5	3.1	2840	3470	YBTX-250M-4-H	55	103.8	88.7	1480	1780
YBT3-90L-2-H	2.2	4.9	4.3	2840	3470	YBTX-80M1-6-H	0.37	1.31	1.13	890	1110
YBT3-100L-2-H	3	6.4	5.4	2880	3490	YBTX-80M2-6-H	0.55	1.7	1.47	890	1110
YBT3-112M-2-H	4	8.2	7.2	2890	3500	YBTX-90S-6-H	0.75	2.2	2	910	1130
YBT3-132S1-2-H	5.5	11	9.6	2900	3520	YBTX-90L-6-H	1.1	3.2	2.9	910	1130
YBT3-132S2-2-H	7.5	14.6	12.9	2900	3520	YBTX-100L-6-H	1.5	4	3.5	940	1150
YBT3-160M1-2-H	11	21.6	18.7	2930	3540	YBTX-112M-6-H	2.2	5.8	5.2	940	1150
YBT3-160M2-2-H	15	28.9	25.1	2930	3540	YBTX-132S-6-H	3	7.2	6.4	960	1170
YBT3-160L-2-H	18.5	35.7	30.3	2930	3540	YBTX-132M1-6-H	4	9.5	8.2	960	1170
YBT3-180M-2-H	22	42.2	36.9	2940	3550	YBTX-132M2-6-H	5.5	12.5	10.7	960	1170
YBT3-200L1-2-H	30	57.9	50.3	2955	3560	YBTX-160M-6-H	7.5	17.1	14.8	970	1170
YBT3-200L2-2-H	37	69.4	60.3	2960	3565	YBTX-160L-6-H	11	25	21.7	970	1170
YBT3-225M-2-H	45	85.9	76.3	2969	3572	YBTX-180L-6-H	15	33	29.3	970	1180
YBT3-250M-2-H	55	103.2	91.7	2970	3570	YBTX-200L1-6-H	18.5	37.6	32.7	980	1183
YBT3-80M1-4-H	0.55	1.5	1.4	1390	1710	YBTX-200L2-6-H	22	44.7	38.9	980	1182
YBT3-80M2-4-H	0.75	2.1	1.8	1390	1710	YBTX-225M-6-H	30	61.1	53.1	985	1187
YBT3-90S-4-H	1.1	2.7	2.4	1400	1710	YBTX-250M-6-H	37	71	61.3	980	1180
YBT3-90L-4-H	1.5	3.6	3.2	1400	1710	YBTX-132S-8-H	2.2	5.8	5.2	710	860
YBT3-100L1-4-H	2.2	5	4.5	1420	1730	YBTX-132M-8-H	3	7.6	6.8	710	860
YBT3-100L2-4-H	3	6.8	5.9	1420	1730	YBTX-160M1-8-H	4	10.5	9.1	720	870
YBT3-112M-4-H	4	8.9	7.7	1440	1750	YBTX-160M2-8-H	5.5	13.4	11.5	720	870
YBT3-132S-4-H	5.5	11.7	10	1440	1750	YBTX-160L-8-H	7.5	17.7	15.5	720	870
YBT3-132M-4-H	7.5	15.4	13.2	1440	1750	YBTX-180L-8-H	11	25.6	22.2	730	880
YBT3-160M-4-H	11	22.6	19.5	1460	1760	YBTX-200L-8-H	15	33.3	29.2	729	882
YBT3-160L-4-H	15	30.5	26.3	1460	1760	YBTX-225M-8-H	22	47.4	41.7	734	886
YBT3-180M-4-H	18.5	35.9	30.8	1470	1770	YBTX-250M-8-H	30	64.7	57.1	730	890
YBT3-180L-4-H	22	42.2	36.9	1470	1770

機座號 Frame Size	外形及安裝尺寸 Mounting and Overall Dimension
	B	C	D	E	F	G	H1	H2	e	L	L1	L2	d	d1	g	f	M×t	M深h
80M1	36	58±2	19	40	6	15.5	176	175	28	330	100	90	60	13.8	12	5	M16×1.5	M8 深 14
80M2							201
90S		62±2	24	50	8	20	280	190		340				15.8	14		M18×1.5
90L							226			375	125
100L1	40	68±2	28	60		24	280/330/380	220		410	140	93		17.8	16		M20×1.5	M10 深 17
100L2							280/380
112M		76±2					280/380/410	245		430		102
132S		89±2	38	80	10	33	280/435	285	32	450		120		21.8	20		M24×1.5
132M							410/435/485			495	178
160M	46	114±3	42	110	12	37	435/485/535	345		596	210	162		24.8	23		M27×1.5
160L							485/535/585			646	254
180M	54	126±3	48		14	42.5	485/585	380		702	241	174		27.8	26		M30×1.5	M14 深 22
180L							535/585/642			740	279
200L1	60	133±3	55		16	49	585/642	430			305	186		30.8	29	6	M33×1.5	M16 深 26
200L2							742
225M	70	149±3	60	140	18	53	642/735/742	480		870	311	196	76	33.8	32		M36×1.5	M18 深 30
250M		168±4	65			58	740	526	40	1000	340			38	38	8	M42×1.5	M16 深 24

注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。

Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
